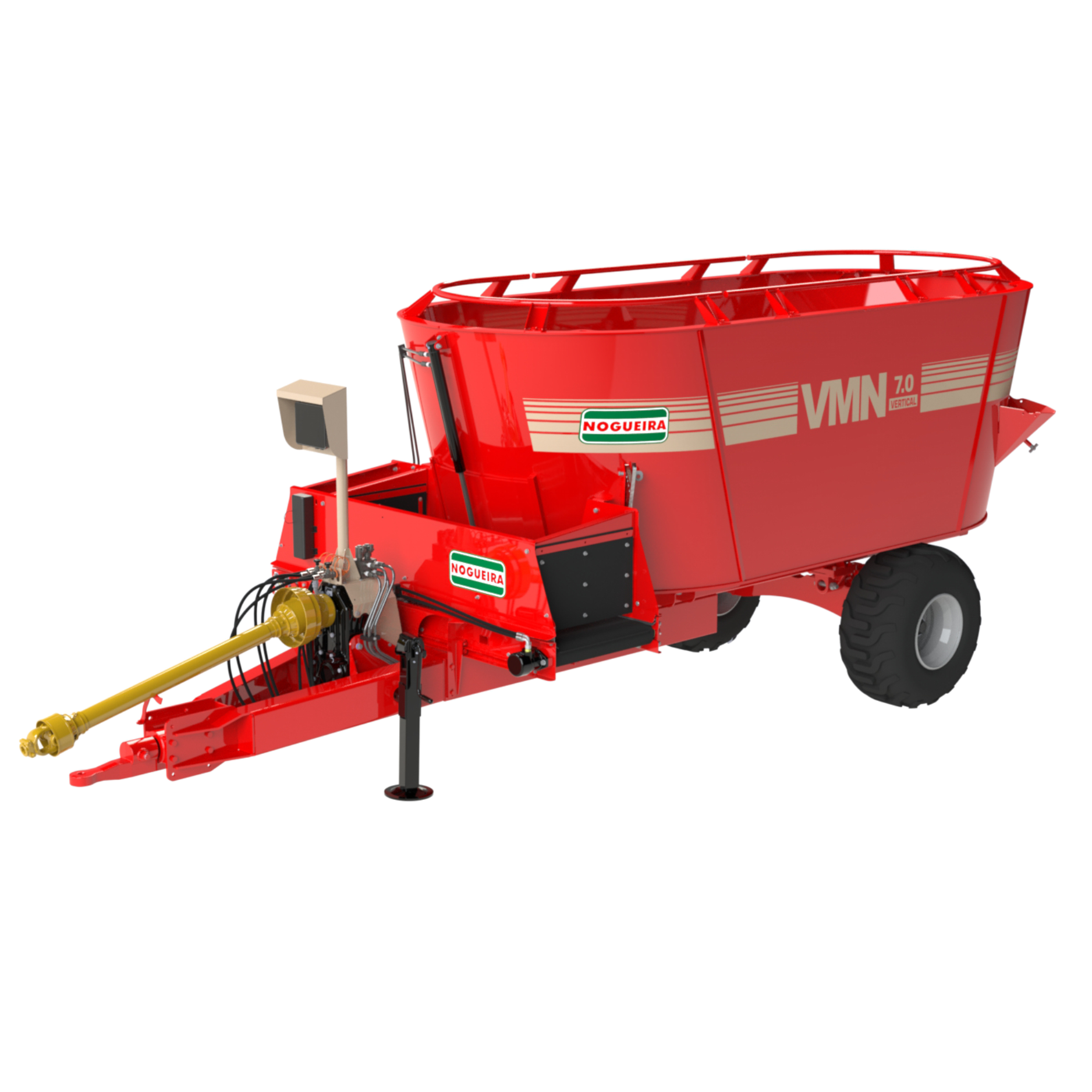

VMN SELF-LOADING 7.0 / VMN 11.0 DOUBLE AUGER

Discover the new Nogueira Vertical Mixers: greater capacity, self-loading arm, and double vertical auger for perfect mixing and maximum efficiency.

BENEFITS:

High Durability: Robust construction in 5mm thick stainless steel;
Efficient Mix: Features two vertical augers, each equipped with 9 adjustable blades. The counter-blades ensure superior efficiency in fiber cutting and uniform mixing;
Simplified Operation: Total control by a single operator, discharge via belt with adjustment for both sides, and auger with dual speed;
Option with Self-Loading Arm: Saves costs, simplifies operation, and preserves the quality of the silage;
Precise Weighing System: Stable load cells, scale with display, and USB output.

TECHINICAL FEATURES
	VMN 7.0	VMN 7.0 SELF-LOADING SYSTEM
Production	7.0 m³	7.0 m³
Drive	Tractor	Tractor
Recommended Power at PTO	70 hp	75 hp
Required revolution at PTO	540 rpm	540 rpm
Height of self-loading system in operation	-	4138 mm
Approximate Weight	2502 kg	3411 kg
Belt dischagre side	Right/Left	Right/Left
Wheels	11L15 (12 canvas)	400/60 R15.5 (T404) tire canvas

	VMN 11	VMN 11 SELF-LOADING SYSTEM
Production	11 m³	11 m³
Drive	Tractor	Tractor
Recommended Power at PTO	80 hp	85 hp
Required revolution at PTO	540 rpm	540 rpm
Height of self-loading system in operation	-	4732 mm
Approximate Weight	3206 kg	4194 kg
Belt dischagre side	Right/Left	Right/Left
Wheels	11L15 (12 canvas)	215/75 R17.5 (14 canvas 135)
