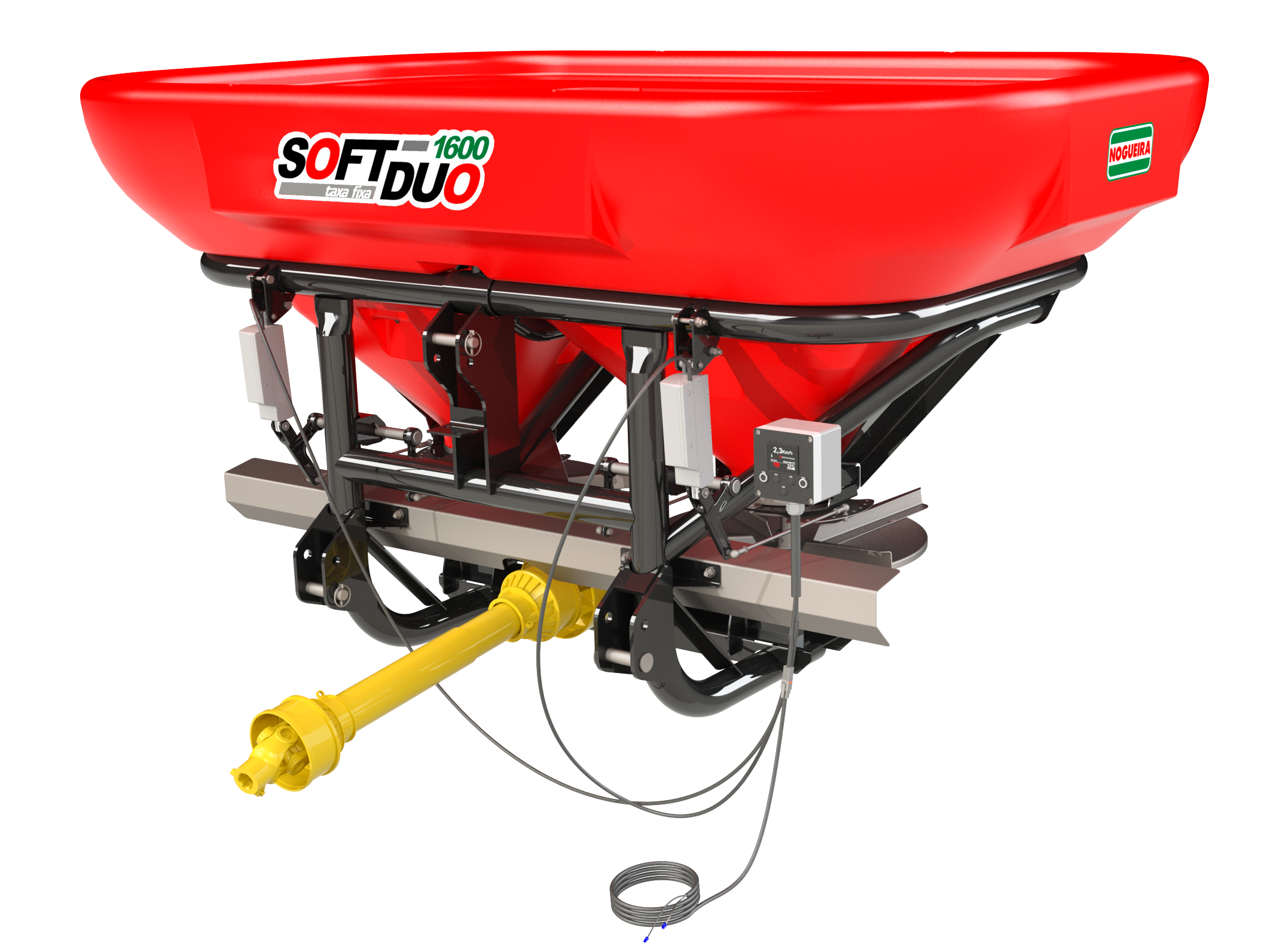

SOFT DUO 1300 | 1600 FIXED RATE

SOFTDUO 1300 and SOFTDUO 1600 FIXED RATE are your guarantee of precision and performance!

Discover below why:

  • Hydraulic openings system regulated by a solenoid valve control, allowing for a more uniform and precise distribution, regardless of the rotation and speed of the tractor’s movement, correcting application flaws by transitioning to a simple, efficient, and highly accurate application.

  • Equipped with a robust chassis and the well-known structure of Soft Duo. The distribution disks are made of stainless steel, providing superior durability against any applied product, such as corrosive substances, for example.

  • It has a set of linear actuators (hydraulic pistons) that allow independent opening and closing of the dosing outlets, regardless of the tractor’s speed, maintaining a fixed application rate. It also has eccentric agitators, which do not harm the products and ensure excellent application.

  • It features a digital controller that handles distribution control via GPS, ensuring that the application is carried out exactly as programmed from the beginning to the end of the job.

SOFT DUO 1300 | 1600 FIXED RATE



TECHNICAL CHARACTERISTICS
  SOFT DUO FR 1300 SOFT DUO FR 1600
Required revolution at PTO 540 RPM 540 RPM
Volumetric capacity 1.800 kg 2.100 kg
Required power at PTO 30 up to 50 hp 30 up to 50 hp
Weight 283,6 kg 288,6 kg
Working Width 16 up to 36 m 16 up to 36 m
Width 1517 mm 1517 mm
Tractor Lifting Capacity From 1800 kg From 1800 kg
Coupling  Category I & II Category I & II
Height 1292 mm 1386 mm
