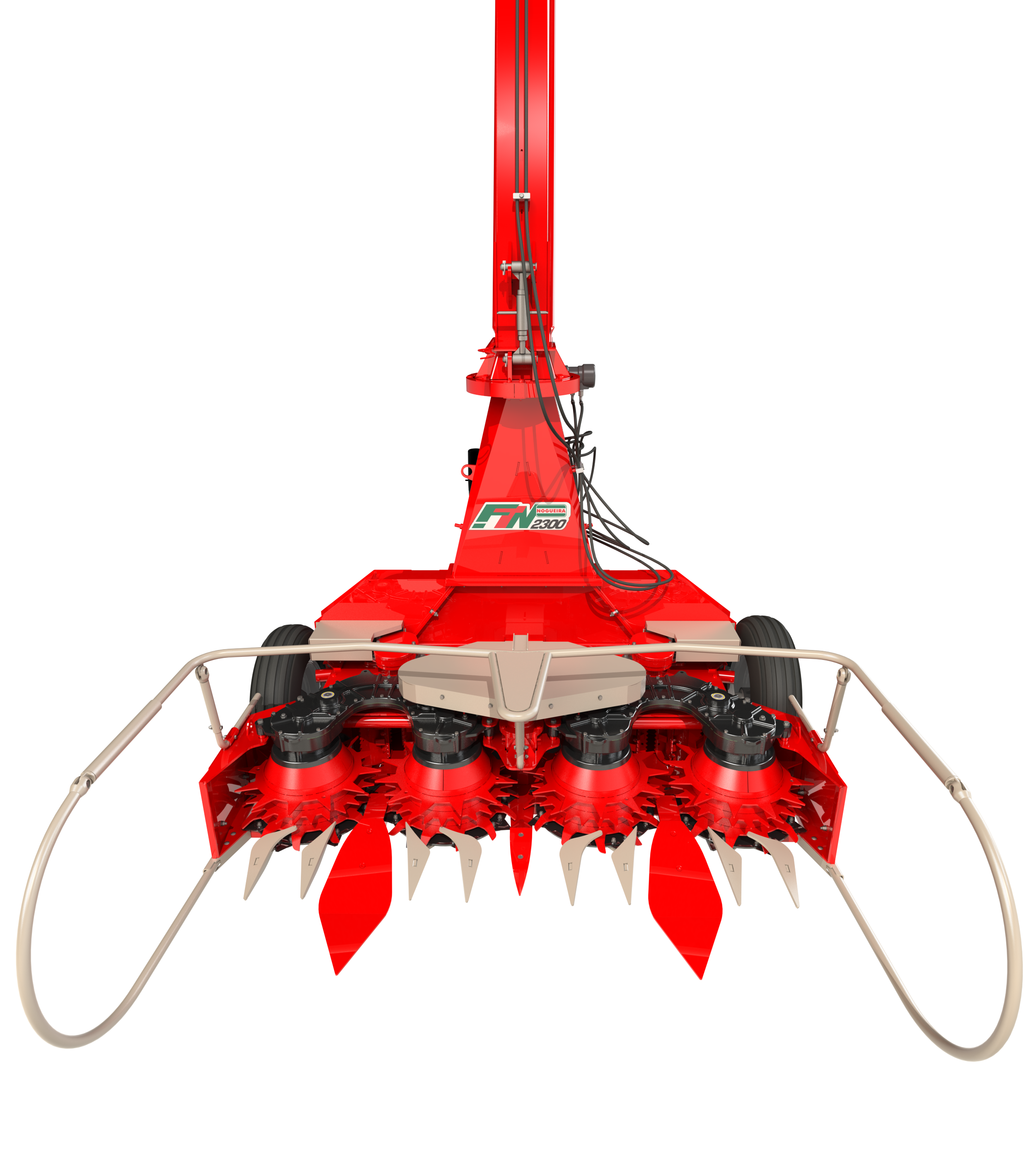

Discover our impressive and versatile FTN 2300, the new Nogueira harvester! Versatile Hitching: Our machine offers the possibility of front power take-off (PTO) operation as well as reverse PTO operation at the rear of the tractor, providing you with flexibility and different working configurations.
Dual rotor with 12 blades and 12 launchers each: Enjoy exceptional cutting performance and achieve efficient harvesting and uniform cutting across various types of crops.
Wide Frontal Coverage: With an impressive working width of up to 2.3 meters, our FTN 2300 allows for harvesting row-planted or broadcasted crops such as corn or sorghum. Its total area system has the capacity to harvest up to five (5) rows with spacing of up to 50cm or three (3) rows with spacing of up to 90cm.
Furthermore, it comes with all the advantages of our harvester line:
Easier fuse pin replacement due to the new locking system; More practical lubrication system for the roller box; Support wheels and side deflector; Shorter distance between the platform and the roller box, promoting better product flow into the equipment and enhancing the harvesting performance of the products.
VIDEOS
| TECHNICAL CHARACTERISTICS | |
| Production | Up to 54 TON/HR |
| Cut sizes | 24 (from 2 to 36mm) |
| Number of rotors | 2 |
| Number of drums | 4 |
| Number of blades | 12 |
| Number of gathering drums | 4 |
| Power source | tractor PTO |
| Required power at PTO | from 115 to 150 hp |
| Required revolution at PTO | 540 or 1000 RPM (optional) |
| Transmission system | gearbox |
| Approximate weight | FRONTAL: 2118 kg / WITH ARM: 2573 kg |
