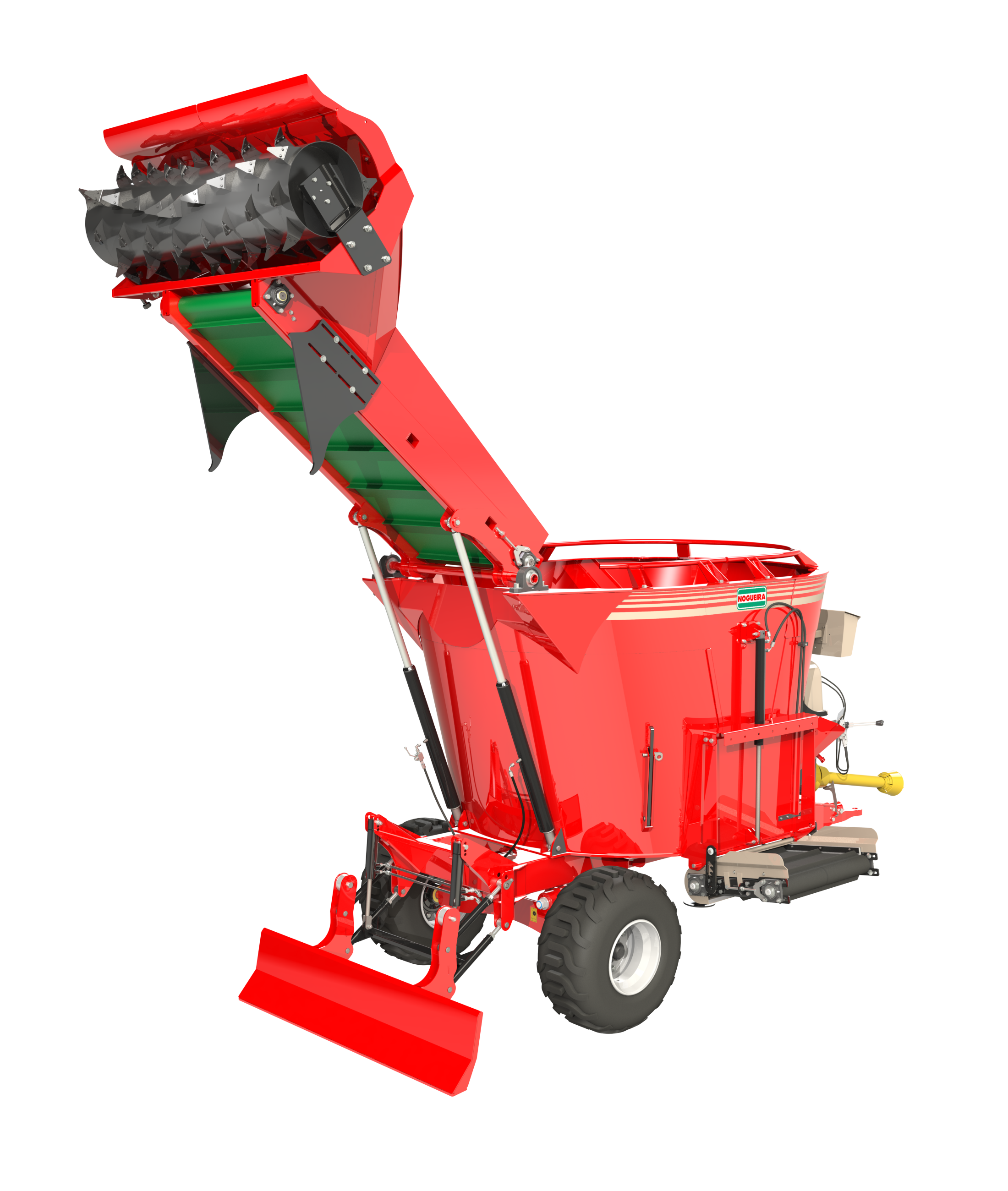

The Nogueira Vertical Mixer with self-loading system is the perfect tool to enhance the quality and feeding process for your animals. Efficient mixing prevents segregation and ensures that animals receive a balanced feed in each ration. Our equipment is highly resistant to corrosion and wear, and it features:
BENEFITS
VIDEOS
| TECHINICAL FEATURES | ||
| VMN 3.5 SELF-LOADING SYSTEM | VMN 5.5 SELF-LOADING SYSTEM | |
| Production | 3.5 m3 | 5.5 m3 |
| Drive | Tractor | Tractor |
| Recommended Power at PTO | 60 hp | 65 hp |
| Required revolution at PTO | 540 rpm | 540 rpm |
| Height of self-loading system in operation | 3385 mm | 3925 mm |
| Belt discharge belt | Up to 780 mm | 870 up to 1200 mm |
| Gravity discharge belt | 400 up to 545 mm | 500 up to 645 mm |
| Approximate Weight | 3.570 mm | 3.770 mm |
| Belt dischagre side | Left (optional) | Left (optional) |
| Gravity discharge side | RIght/ Left / Both (optional) | RIght/ Left / Both (optional) |
| Inox | 2377 kg | 2857 kg |
| Wheels |
400/60 R15.5 (HF75) (T404) tire canvas |
400/60 R15.5 (HF75) (T404) tire canvas |
