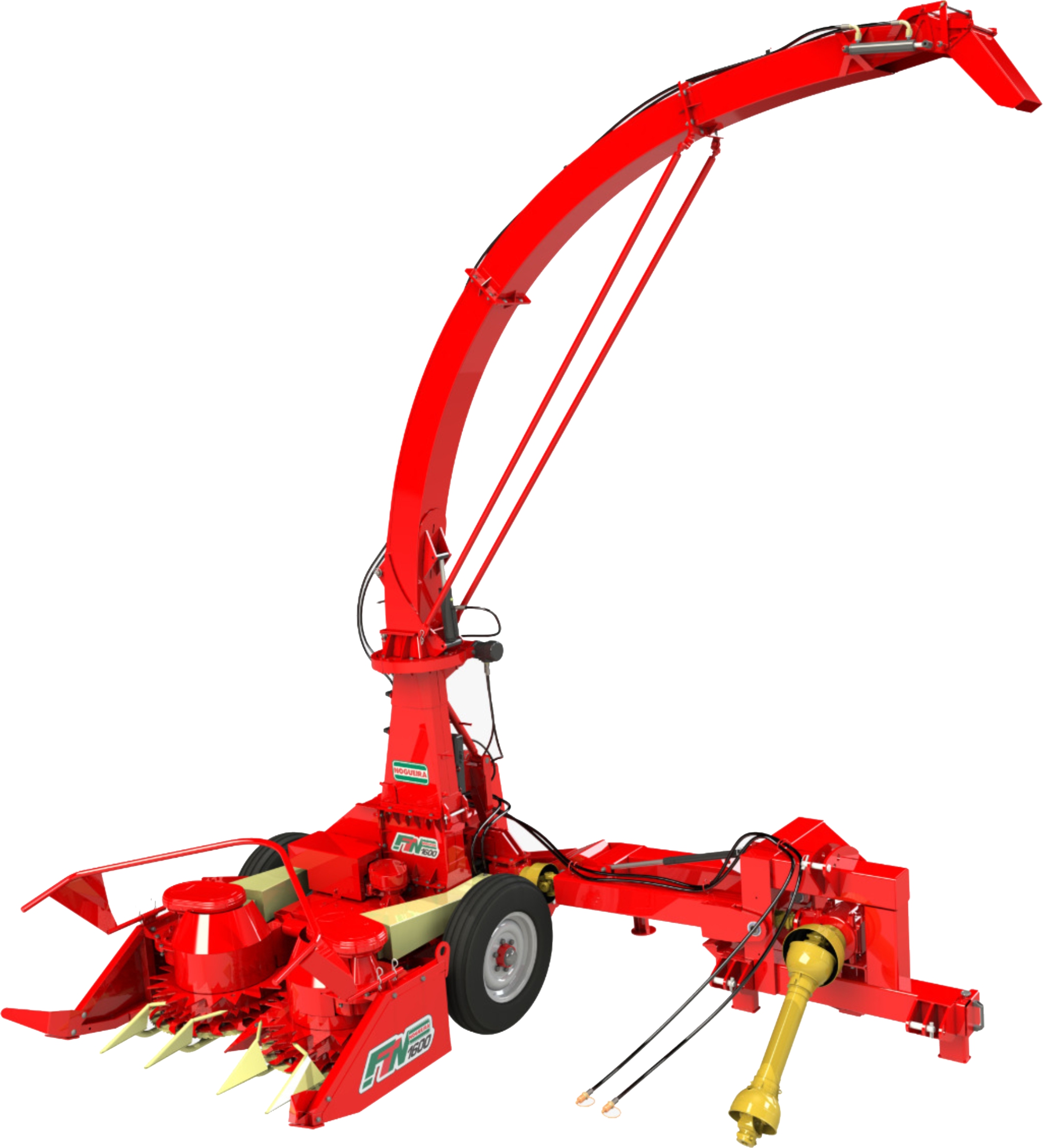

FTN 1600 harvesters are versatile machines which are excellent for clean crop production, intercropping, as well as entering cross-sown or rowsown fields.
This product as standard comes with ideal rectangular saws to improve the cutting performance.
• Row-independent and multi-forage harvesting with 1,6m working width;
• Powerful rotor with 14 blades; cut and throw action in a single operation;
• Frame designed for side, front or rear harvesting, allowing opening of fields as well as easier harvesting in small plots and edges;
• Direct drive transmission system without belt/chain for taking better advantage of tractor power and easier maintenance;
• Fully articulated frame and 2 support wheels with hydraulic adjustment allows harvesting in uneven terrains without damaging the equipment frame and relieves tension on tractor 3-point linkage.
| TECHNICAL CHARACTERISTICS | |
| Production | Up to 50 TON/HR |
| Cut sizes | 18 (from 2,5 to 43 mm) |
| Number of rotor | 1 |
| Number of drums | 2 |
| Number of blades | 14 |
| Number of saws | 2 |
| Number of gathering drums | 4 |
| Power source | tractor PTO |
| Required power at PTO | from 100 to 140 hp |
| Required revolution at PTO | 540 or 1000 RPM (optional) |
| Transmission system | gearbox |
| Working width | 1,6 m |
| Weight | 2599 kg |
